With its outstanding performance, excellent resolution, superb control and precise musical reproduction, we have made a preamplifier that is true to our slogan, “Closing the gap to the master”. Our new two-channel EC 4.8 MKII preamplifier enhances the predecessor, and is sure to make all good power amplifiers sound even better!
All measurements are made at 120V / 240V  //50Hz / 60Hz


Input impedance balanced (fixed) 47 Kohm
Output impedance 100 ohm
Input level    (Single ended) >15 Vp-p
Input level    (balanced) >30 Vp-p
Max output level    (Single ended) >15 Vp-p
Max output level    (Balanced) 30 Vp-p
Gain - 111dB to +6dB
Noice Floor <-130dB (@ 0dB gain)
Frequency responce 0.5 - 200.000 Hz
Channel Seperation > 120dB
THD + N <0.002%
IMD TBD

Power consumption (no load or signal) 30 W

Dimensions and Waight
Width 483 mm / 19 inch
Depth 386 mm / 16.1 inch
Height 76 mm / 4.5 inch
Weight 9 kg

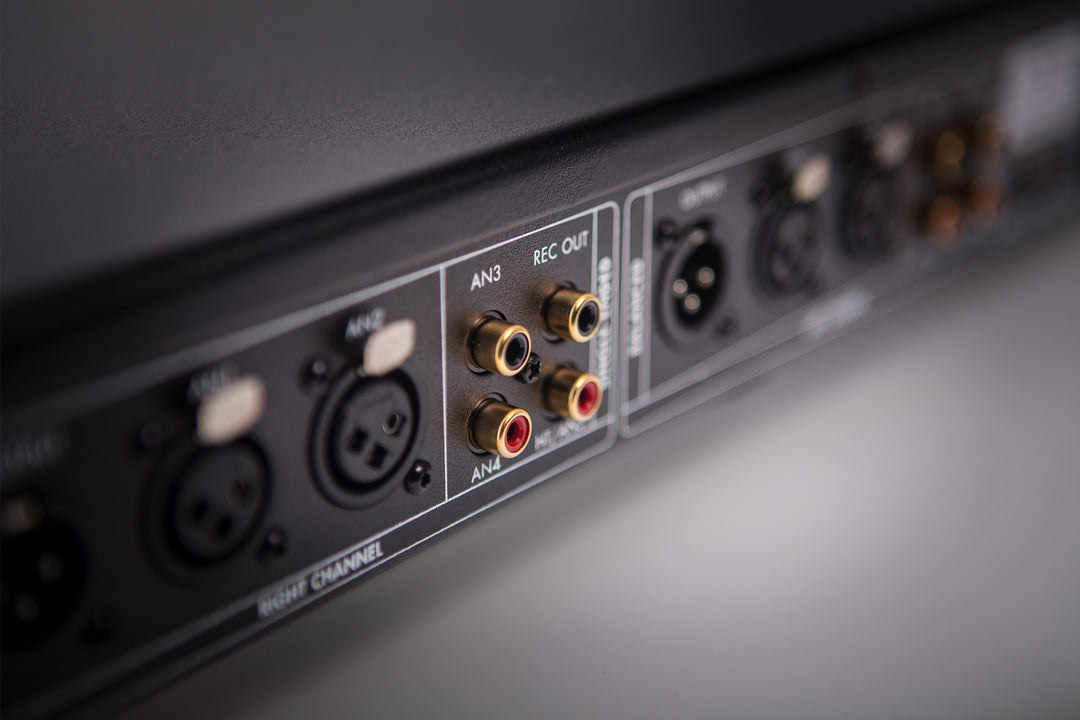

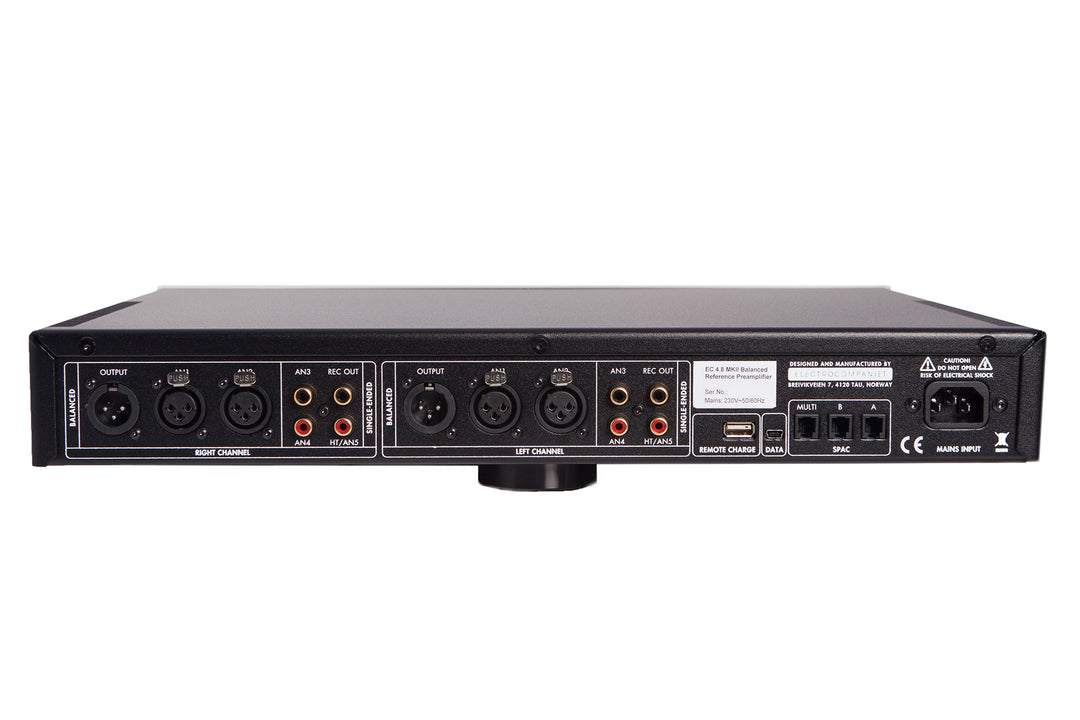

Inputs
Balanced 2 x2 channel
Single ended 3 x 2 channel

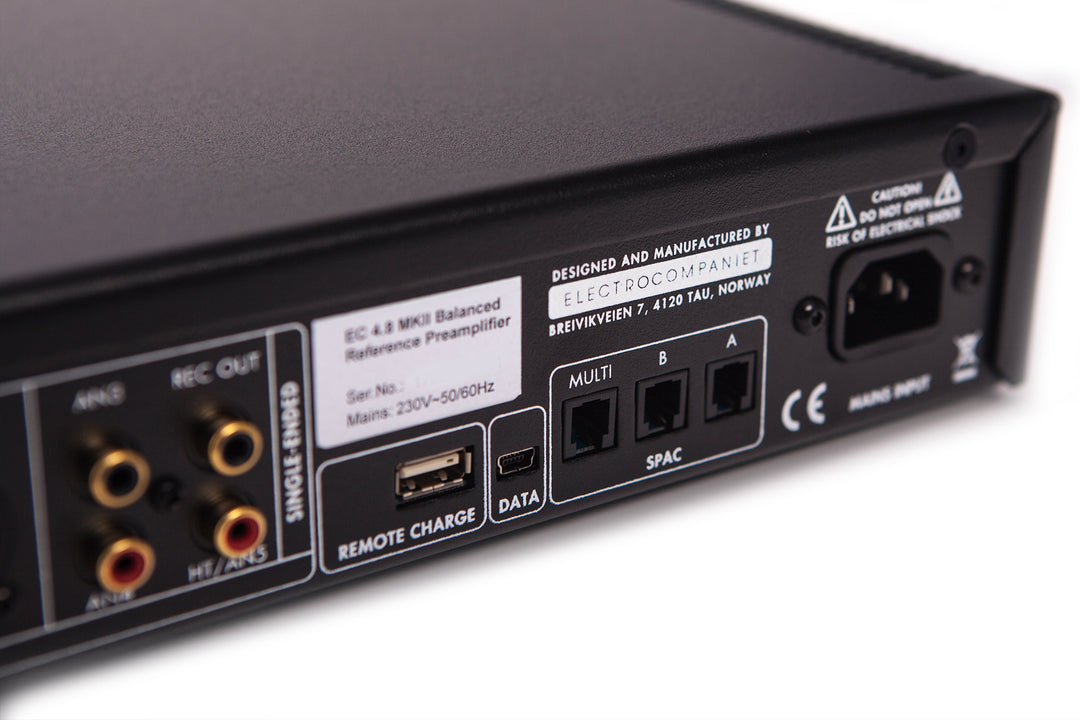

Control Ports
Nettwork 3 x SPAC
Programming 1 x USB

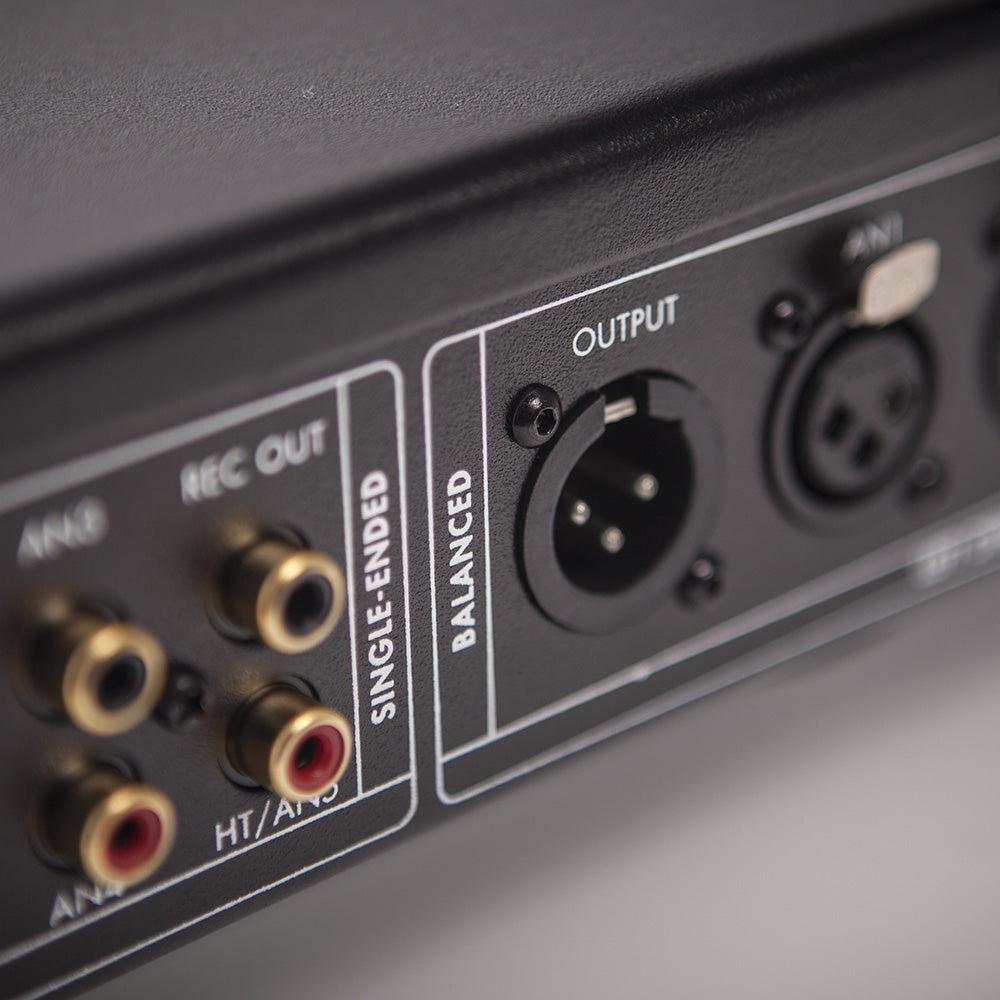

Outputs
Balanced 1 x 2 channel
Single ended Record Out

Store Locator is loading from Storemapper store locator software...



UNAUTHORIZED DEALERS WARNING

Electrocompaniet products are sold internationally through a network of authorized distributors and dealers selected by Electrocompaniet. These representatives have been chosen for their ability to properly represent Electrocompaniet. Unfortunately, Electrocompaniet products are sometimes sold by companies that are not authorized to do so. These unauthorized resellers do not purchase products directly from Electrocompaniet, they acquire the goods from other sources. Due to this nature, Electrocompaniet goods sold by unauthorized dealers are not entitled to Electrocompaniet warranty coverage. We urge you to use caution when making a Electrocompaniet purchase from an unauthorized reseller. they come through shady “gray market” channels and there will be NO WARRANTY. Electrocompaniet only honors warranties on products sold through Authorized Electrocompaniet distributors and dealers. Authorized Electrocompaniet Dealers will NEVER match the prices offered in these shop and on these sites. We offer exceptional products and we invite you to hear that difference. Sit down today in an Authorized Electrocompaniet Dealer’s store and listen — one more thing those online sites can’t offer — an in-store demo! Please check with your local distributor or us if you are uncertain, or contact us.

Balanced audio

Fully balanced discrete analog audio circuitry.



IMPROVED
Sonic performance

The MKII further enhances the EC 4.8 with new mechanics and sonic enhancements, and an updated design to be in line with the new MKII versions of our products.

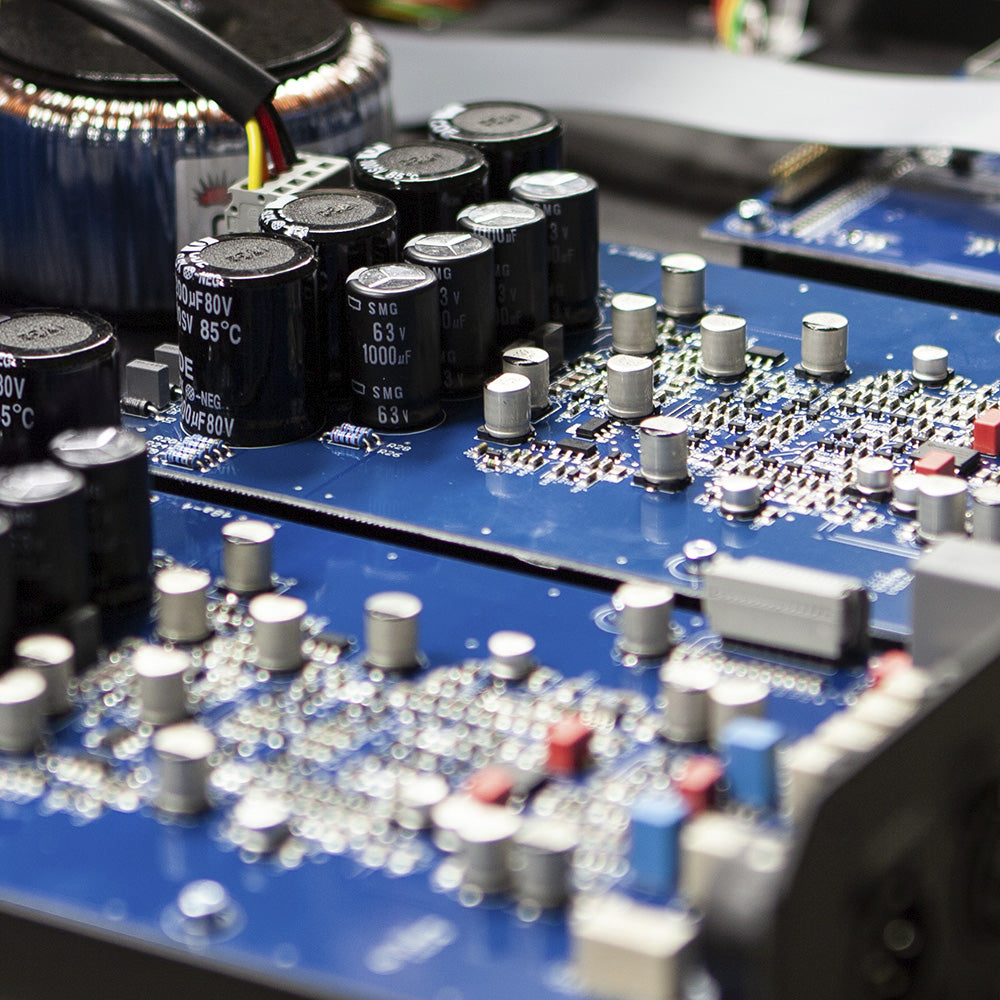

DUAL MONO Design

It is designed as two separate mono preamplifiers, each with its own independent power supply.
