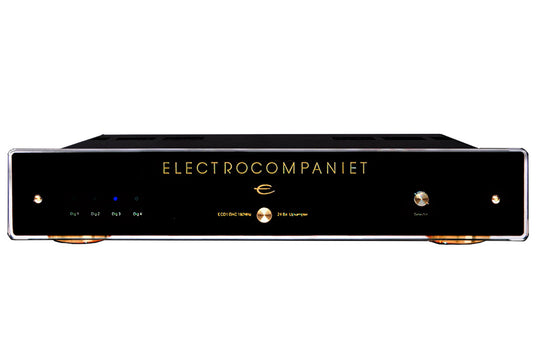

ECD 1
The ECD1 is a 24Bit 192KHz upsampler DAC accepting 16 - 24Bit input and upsample it to 24Bit resolution. This will give app. 10dB more headroom by lowering the noise floor, with more details reproduced.
The D/A converter is a sophisticated balanced 192KHz unit. Due to the higher sampling frequency and the cancellation of digital noise in the balanced system, the bandwidth is moved 2 octave up in frequency, compared to standard CD system using 44.1KHz sampling frequency, and therefore a 6dB rolloff can be used.
All analogue circuitry is fully balanced and symmetrical.

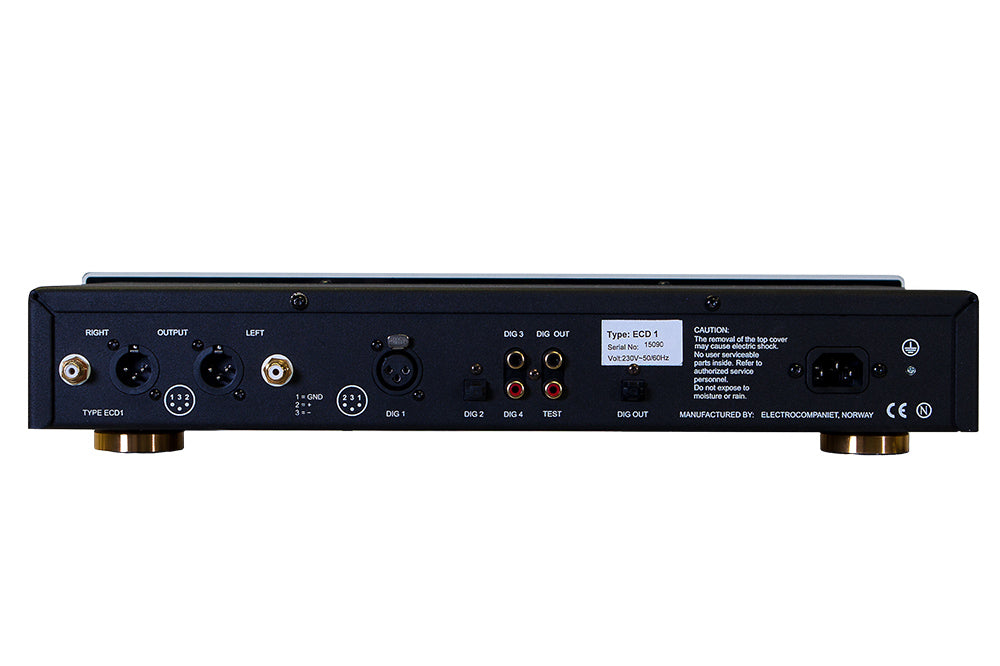

With four input's and connection for AES/EBU ( balanced ), RCA and TOSLINK, all standard formats are covered.
Two digital output for connection to multichannel receiver's etc. TOSLINK (Optical) and RCA.
Analogue output's - Balanced and single ended.
The digital and analogue circuitry used in the ECD1 is the same as our EMC1 UP CD player.
The ECD1 will improve the sound from any CD player, bringing it to a High-End source.
All measurements are made at 120V / 240V //50Hz / 60Hz | |
Analog stage | |
Output level(unbalanced) | 1,6 V |
Output level(balanced) | 3,2 V |
Gain(unbalanced) | 1,6x(4dB) |
Gain(balanced) | 3,2x(10dB) |
Maximum output(balanced) | >14 V RMS |
THD(1 V out, 1 Khz) | <0,002 % |
Channel separation(1 V out, 1 kHz) | >90 dB |
Equivalent input noise | 4 uV |
Analog filter(-3 dB) | 75 kHz |
Output impedance | 100 Ohm |
Digital stage | |
Dig. inputs | XLR-AES/EBU, RCA,OPTICAL TOSLINK |
Dig. outputs | RCA,OPTICAL TOSLINK |
Signal to noise | 100 dB |
Dynamic range | 100 dB |
THD | -100 dB |
Frequency response | 20Hz - 20 kHz |
Input / Output impedance(fixed) | 75 Ohm |
Sampling frequency in | 32 - 96 kHz |
Power consumption (no load or signal) |
15 W |
Dimensions | |
Width | 483 mm / 19 inches |
Depth | 255 mm / 10 inches |
Height | 83 mm / 3.2 inches |
Weight | 5 kg. / 11 lbs. |
